Bridge Tooling for Smooth Production Transition

Launch products faster and bridge the gap between prototyping and mass production with reliable medium-volume tooling solutions.

What is Bridge Tooling?

Bridge tooling is an intermediate manufacturing solution used between prototype development and full-scale production. It is designed to support low-to-medium production volumes while final production tooling is being prepared.

This tooling method helps companies launch products earlier, validate market demand, and maintain supply chain continuity without waiting for hardened production molds.

0 ＋

Mold Sets per Year Capacity

Key Advantages of Bridge Tooling

Faster Market Launch

Bridge tooling helps companies release products earlier before full production tooling is completed.

Lower Production Cost

Compared with hardened steel molds, bridge tooling offers lower tooling investment costs.

Mid-Volume Output

Ideal for producing thousands of functional parts during transitional production stages.

Material Testing

Supports production-grade resins for realistic performance and application verification testing.

Flexible Engineering

Design updates can still be implemented efficiently during early production stages.

Reduced Supply Delays

Bridge tooling helps maintain stable supply chains and avoid production interruptions.

Why Choose us

Why Global Clients Trust RAPIDMFG-ONLINE

Global clients trust RAPIDMFG-ONLINE for rapid tooling because we deliver fast lead times, stable quality, and cost-effective solutions. With strong engineering support and in-house manufacturing, we help customers accelerate product development and reduce risks from design to production.

Fast Turnaround

Rapid production to meet tight deadlines and accelerate your project.

Quality Assurance

ISO 9001 & IATF 16949 certified processes ensuring high-quality output.

Professional Expertise

Skilled engineers and operators with decades of manufacturing experience.

On-Time Delivery

Reliable scheduling to ensure your orders are delivered as promised.

Customized Solutions

Tailor-made services to meet your specific project requirements.

Flexible Production

Capable of low-volume, prototyping, and large-scale production efficiently.

Transforming Ideas into Manufactured Products

With Rapid Turnaround, ISO-Certified Processes, and Expert Engineering

We Help You Bring Innovative Products to Market Faster and More Reliably

0 +

Years Manufacturing Experience

0 +

SETS OF MOLDS

0 +

Countries Global Customers

0 %

On-time Delivery

Bridge Tooling Materials

Bridge tooling is designed to fill the gap between prototype development and full-scale production, which means material selection must balance cost efficiency, mechanical performance, and production stability. At this stage, materials need to perform reliably under limited production cycles while still reflecting final product requirements.

Common Metals Used in Bridge Tooling

Aluminum alloys are widely used due to their excellent machinability and fast turnaround capability. They are ideal for moderate-volume production where dimensional stability is critical.

Aluminum 6061 – Good strength-to-weight ratio, excellent machinability, suitable for structural and functional parts
Aluminum 7075 – Higher strength, used for more demanding applications requiring better wear resistance

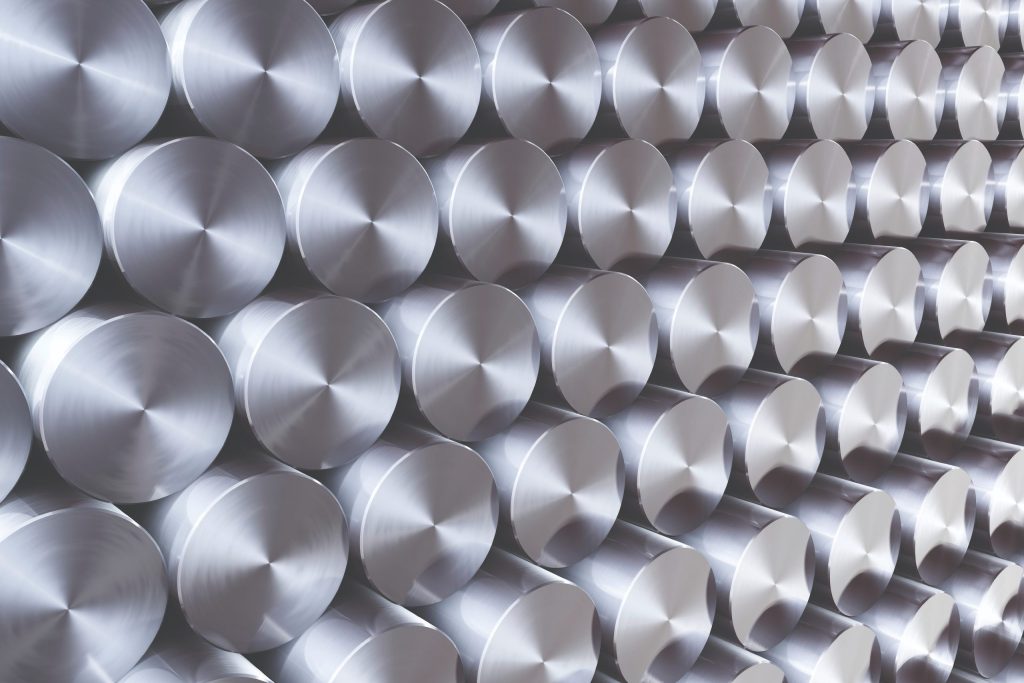

Pre-hardened steel (P20) – Preferred when higher durability and longer tool life are required in bridge production

Engineering Plastics for Tool Components

In some bridge tooling applications, especially for inserts, fixtures, or non-load-bearing components, engineering plastics are used to reduce cost and lead time.

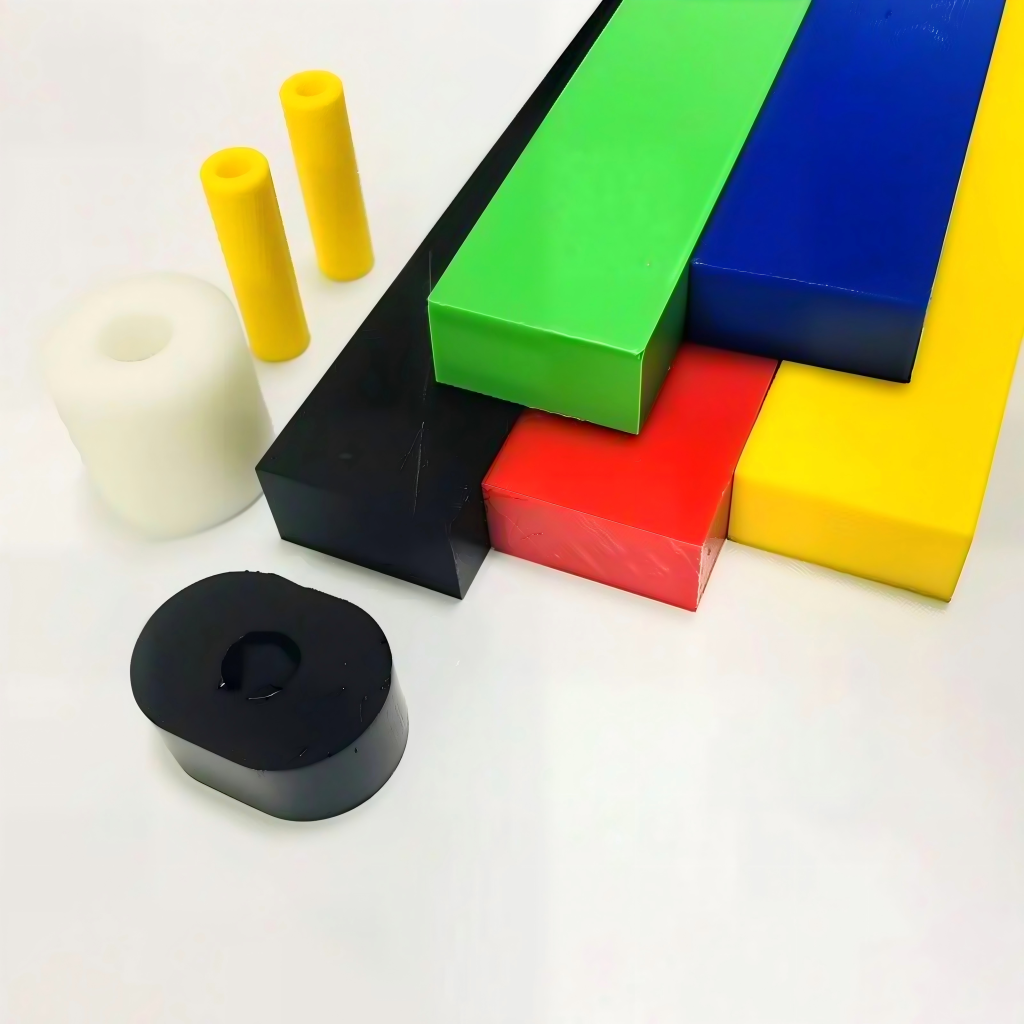

POM (Delrin) – High stiffness and low friction, suitable for precision fixtures
PEEK – Excellent thermal and chemical resistance for specialized environments
Nylon (PA6 / PA66) – Good toughness and impact resistance for functional prototypes

Quality Control & Inspection

At RAPIDMFG-ONLINE, quality is not inspected at the end — it is built into every stage of the manufacturing process.

Incoming Material Inspection

Material certification verification

Dimensional checks

Surface condition inspection

Traceability documentation

In-Process Quality Control

Critical dimension monitoring

Tool wear management

First article inspection (FAI)

In-process random sampling

Final Inspection

Full dimensional inspection

Tolerance verification

Surface finish evaluation

Cosmetic check

Pre-Shipment Validation

Quantity confirmation

Inspection report generation

Secure packaging

Final quality review

Start Your Bridge Tooling Project Today

Upload your CAD files and get a fast, accurate quotation from our engineering team within hours.

Most Popular Questions

When should I use Bridge Tooling?

Bridge Tooling is ideal when your product is still under validation or market testing, but you already need higher volumes than prototype tooling can support. It is commonly used before committing to mass production tooling.

What is the difference between Bridge Tooling and Production Tooling?

Bridge Tooling is designed for short to medium production runs with faster lead times and lower cost. Production Tooling is built for long-term, high-volume manufacturing with maximum durability and cycle efficiency.

How many parts can Bridge Tooling produce?

Typically, Bridge Tooling can produce anywhere from a few thousand to tens of thousands of parts, depending on material, mold design, and production conditions.

How long does it take to manufacture Bridge Tooling?

Lead time is generally shorter than production tooling, typically ranging from 1 to 3 weeks depending on part complexity and design requirements.

Is the part quality consistent with production tooling?

Bridge Tooling provides stable and repeatable quality, suitable for functional testing and limited market release. However, for extremely high-volume production, production tooling offers higher long-term stability.

Can Bridge Tooling be upgraded to Production Tooling?

In many cases, yes. Designs validated through Bridge Tooling can be optimized and then transferred to production tooling with minimal redesign effort.


